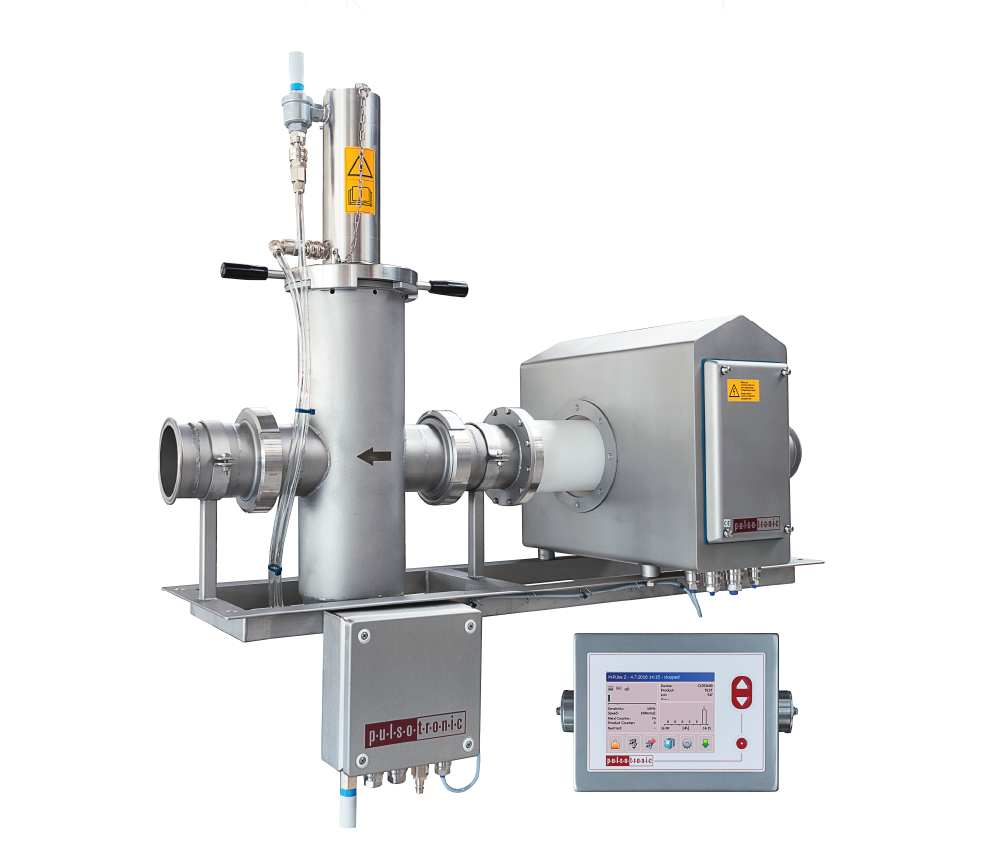

Pipe Detector-Inline
Devices from the M-Pulse InLine series particularly are used in the food industry for the detection of fluid products and commodities on metallic contamination.
Never the less they can also be applied in other industrial branches. The detector can be equipped with different ejection valves. Tubes are available in diameters from 40 mm to 150 mm.
The connection to the tubes is either realized with Tri-Clamp binders or with milk thread. Thus the detectors can be installed subsequently with little time and effort.
The electronics is connected via a 3 m connecting cable. For this reason the device can always be operated easily even when the sensor is used in places that are difficult to access.
Function
The test material passing through the product tube is detected on metallic contamination by the sensor. If metal is detected, this is identified and analyzed by the operating electronics. The electronics identifies in real time if there really is metal or if it is just the product effect. Metal is separated via the ejection valve.
Specific Characteristics
- design in stainless steel
- protection class IP69K
- fade-out of product-effect
- different ejection valves available
- separate control unit
- stable base frame
- individual construction
Other Pipe Detectors

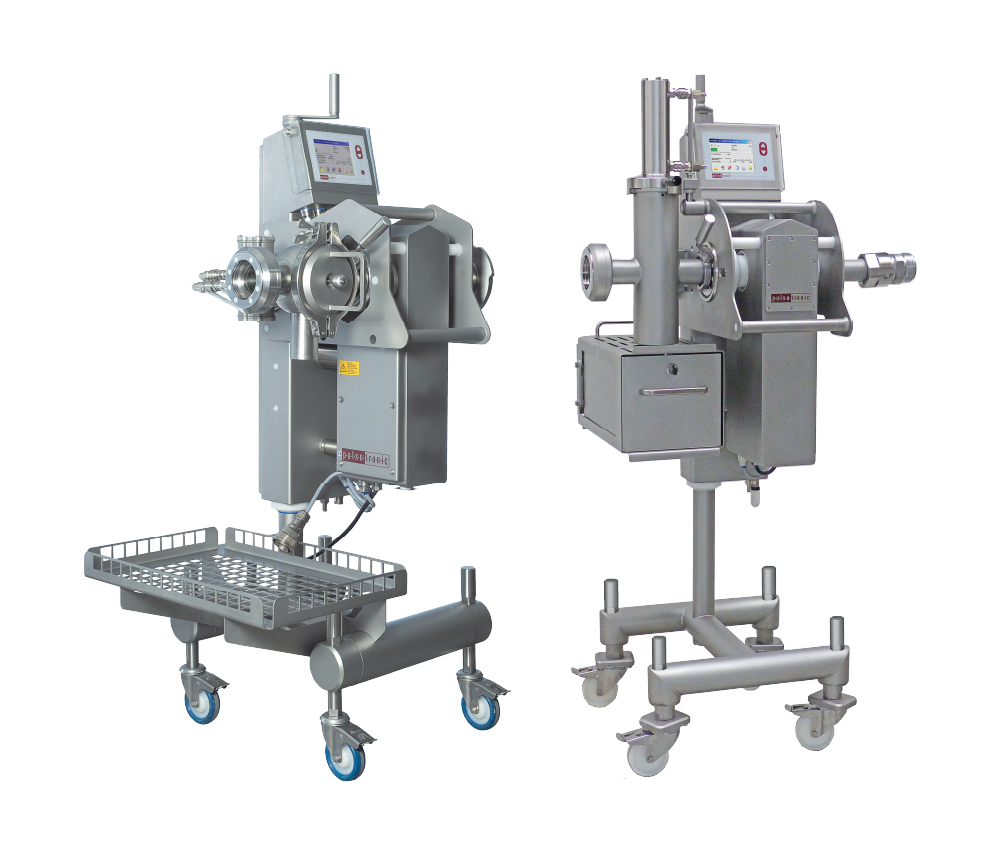

Pipe Detector - INFLEX
